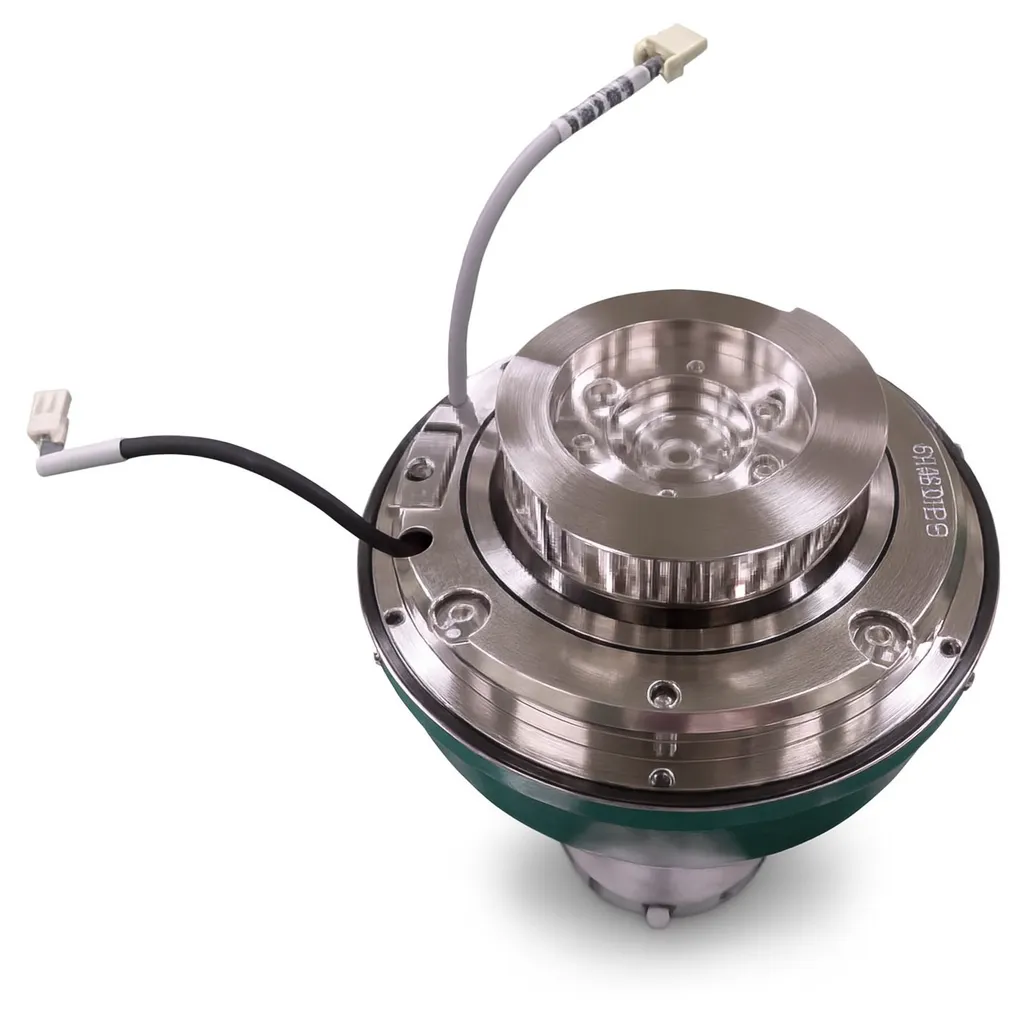

200 mm CMP Pad Conditioner Upgrade amat MIRRA for advanced efficiency
The 200 mm CMP Pad Conditioner Upgrade amat MIRRA enhances reliability and extends tool performance in CMP operations. Developed to address common issues in the diaphragm-based pad conditioning system of legacy amat MIRRA tools, this upgrade replaces fragile mechanical elements with a modern, sensor-integrated cylinder-based solution.
As a direct alternative to OEM configurations, this retrofit significantly improves uptime, pad conditioning precision, and long-term tool availability. It has been widely adopted in global fabs seeking a practical, low-risk enhancement to extend the lifespan of their CMP systems without undergoing full tool replacement.
Key benefits
Reliability improvement with a cylinder-type design replacing the diaphragm, eliminating air leaks and unstable downforce
• Extended lifetime exceeding 6 months compared to less than 2 months with OEM design
• Integrated Up/Down and Rotation sensors to prevent wafer loss and improve process control
• Cost savings up to 1,800 USD per system per year, thanks to reduced preventive maintenance and lower wafer scrap
• Compatibility upgrade bringing 12-inch tool functionalities to 8-inch equipment
field results
More than 550 upgrades installed worldwide over 15 years
• Qualified by leading fabs including Samsung, SK Hynix, STMicroelectronics and Dongbu HiTek
• Process moving rate improvement of +5.14% on standard production lines
A smarter solution for Applied Materials CMP tools
Our 200 mm CMP Pad Conditioner Upgrade amat MIRRA is a field-tested solution specifically designed for applied materials CMP environments, offering a reliable replacement to traditional diaphragm-based pad conditioning systems. By replacing fragile diaphragm mechanisms with a robust cylinder actuator, this upgrade eliminates frequent mechanical failures caused by seal deformation, unstable downforces, and non-repeatable positioning. The design includes integrated up/down and rotation sensors, enabling real-time operational feedback and consistent process control.
This plug-and-play upgrade is fully compatible with amat MIRRA platforms and is designed to perform under extended preventive maintenance cycles (over 9 months). It is already deployed in production environments at STMicroelectronics, Hynix, Samsung, and more.
future-proofing your CMP line with advanced engineering
The 200 mm CMP Pad Conditioner Upgrade amat MIRRA leverages a redesigned mechanical system built to correct chronic reliability and yield issues in legacy tools. Originally, the diaphragm-type conditioner head presented multiple points of failure: short lifespan, unstable downforce, and the inability to monitor movement failures. In a high-throughput CMP environment, these weaknesses translate to increased wafer loss, maintenance downtime, and degraded process control.
Our new design introduces a cylinder-based mechanism that ensures stable actuation over time, even under continuous use. The integrated sensors monitor up/down motion and rotation in real time. Combined with an improved controller interface and touchscreen display, the solution enables process engineers to actively monitor tool behavior and avoid catastrophic failures during production.
This upgrade is used by fabs producing over 70,000 wafers/month and has delivered a 5.14% increase in process efficiency, alongside annual cost savings exceeding $18,000 per tool. Its compatibility with 8” applied materials CMP platforms like MIRRA and MIRRA MESA further streamlines integration and validation efforts.
Precision and stability with CMP applied materials systems
This upgrade is fully compatible with CMP applied materials architectures, specifically designed for MIRRA and MIRRA MESA systems. By eliminating the inconsistent behavior of the diaphragm-type system, it reduces yield loss caused by undetected pad contact failures and incorrect downforce values. The solution is engineered with real-world CMP challenges in mind, including vibration control, dynamic pressure variation, and mechanical bacKLAsh.
The conditioner upgrade ensures:
• Up to 9 months of continuous operation without head replacement
• Position repeatability across thousands of cycles
• Support for both up/down and RPM sensing
• Integration with amat GUI for complete diagnostics
This not only supports improved wafer planarity but enhances CMP throughput by reducing tool idling and requalification downtime.
Field-proven in over 550 tools globally, this upgrade demonstrates outstanding durability across multiple applications including STI, Oxide, and Tungsten polish steps. The head’s longer MTBF, combined with integrated diagnostic tools, ensures more accurate process control with lower total cost of ownership.
Benefits beyond mechanics – engineered for process performance
In addition to mechanical robustness, the upgrade supports advanced control over CMP consistency. CMP processes depend heavily on pad surface conditioning to maintain desired removal rates and uniformity. This upgrade minimizes amat CMP pad break-in variability and reduces the likelihood of micro-defects linked to faulty conditioning cycles.
The system’s compatibility with applied materials CMP pad monitoring tools means engineers can gather real-time feedback, analyze rotational consistency, and adjust process parameters faster. This makes the upgrade not just a mechanical fix, but a process-enabler.
Engineered compatibility with applied materials MIRRA CMP and MIRRA MESA systems
The conditioner head was specifically designed for seamless integration with applied materials MIRRA CMP tools and has been field-tested to meet the performance standards expected from modern CMP applied materials platforms. The upgraded head assembly replaces the existing structure for the applied materials MIRRA MESA CMP without requiring modifications to the surrounding interface, allowing for a fast and disruption-free transition.
This integration helps preserve tool uptime while simultaneously delivering better diagnostic accuracy, improved yield outcomes, and enhanced operational stability. Many fabs have reported lower corrective maintenance frequencies and noticeably longer preventive maintenance intervals after implementing this solution for applied materials CMP products in both MIRRA and MIRRA MESA environments.
Take control of pad conditioning with next-gen engineering
Whether you are maintaining legacy MIRRA tools or optimizing performance across your CMP line, the 200 mm CMP Pad Conditioner Upgrade amat MIRRA delivers exceptional ROI and technical value. It helps extend the lifecycle of high-value amat spare parts and adds intelligence to core process equipment.
Request your detailed quote today or contact a technical advisor to explore how this solution integrates with your CMP strategy. For enhanced availability, compatibility, and long-term performance, this upgrade aligns with the most demanding semiconductor spare parts strategies in today’s industry-leading fabs.
